R&D PRODUCT



Automated Silicon Wet Etch System

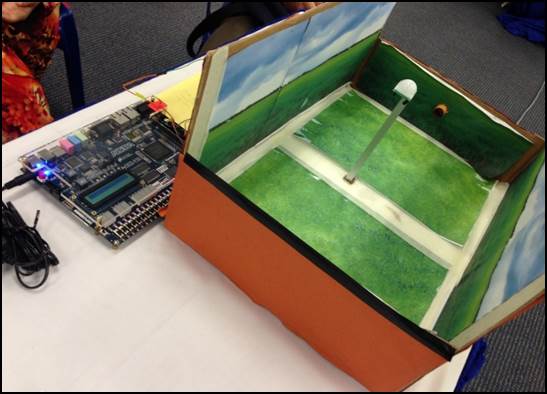

   Agriculture Surveillance Hydroponic Paddy







    Ultra Low Cost Automotive Passenger Safety system Trainer

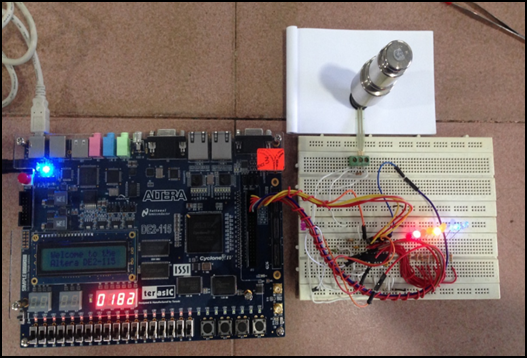

The Shoe Insole Using FPGA Implementation





 MEMS Pressure Sensor

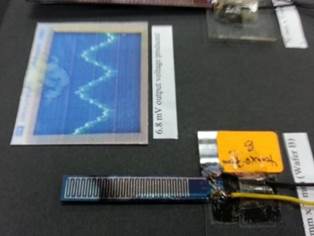

Cantilever for Energy Harvesting





  Wireless Shoe In-sole System for   Biomedical and Biometric applications





Microcantilever produced by laser micromachine tool







 Piezoresistive Accelerometer MEMS Sensor

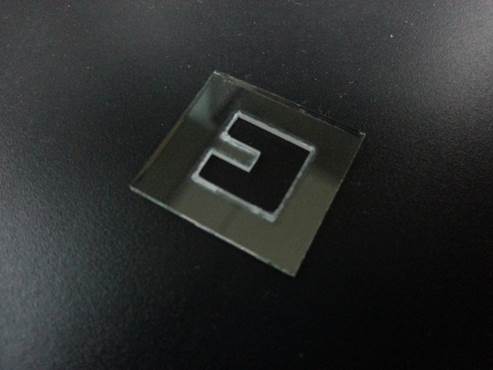

Glass-based Microcantilever Formation By Laser Micromachining

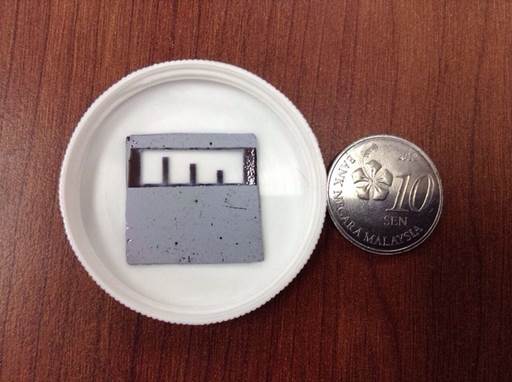

  Array Microcantilever (top and back side of the samples)

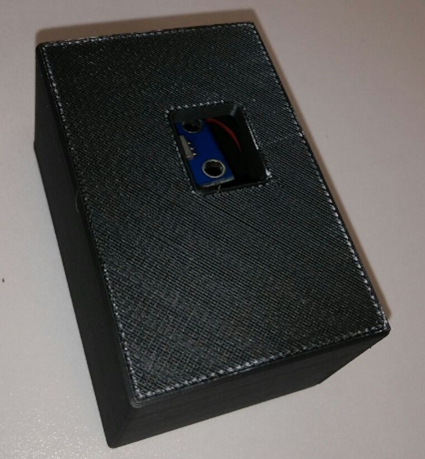

Intelligent Wireless Tire Pressure Monitoring System (TPMS)







 Halalan Toiyiban Chicken Cleaning for Poultry Processing





Halalan Toiyiban Basket Cleaning for Poultry Processing







      Automated Bird, Rat, and Pig Repellent System







Piezoresistive Accelerometer Sensor

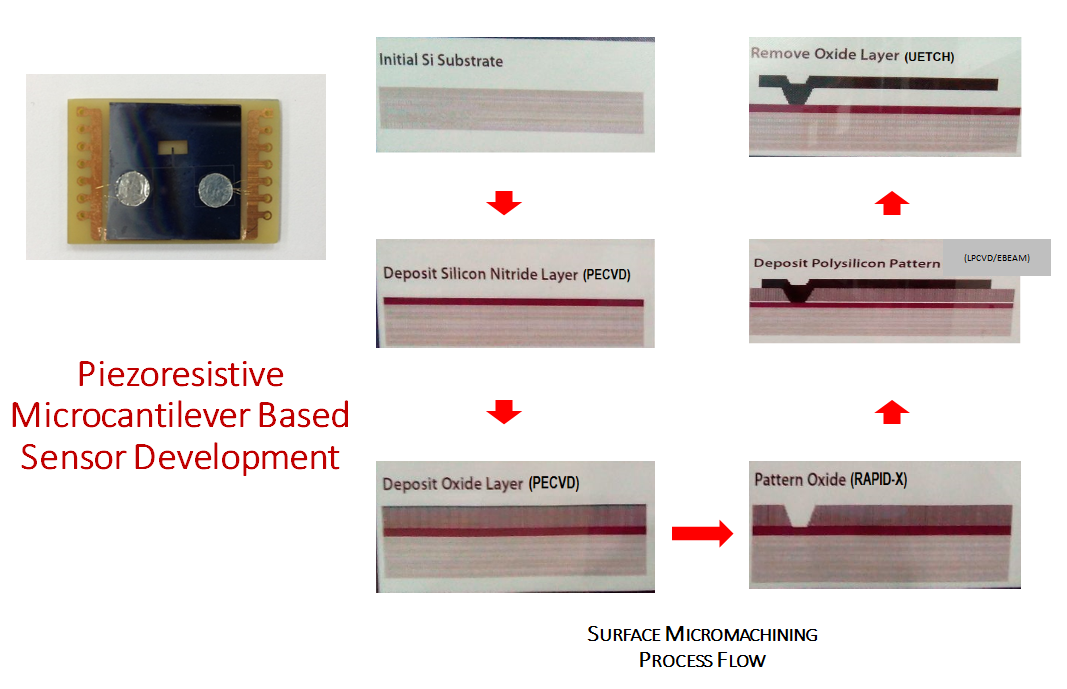

Piezoresistor Mask & Fabrication Structured by Micromaching





Design of Compact Low Pass Filter In Microstrip / MEMS Technology

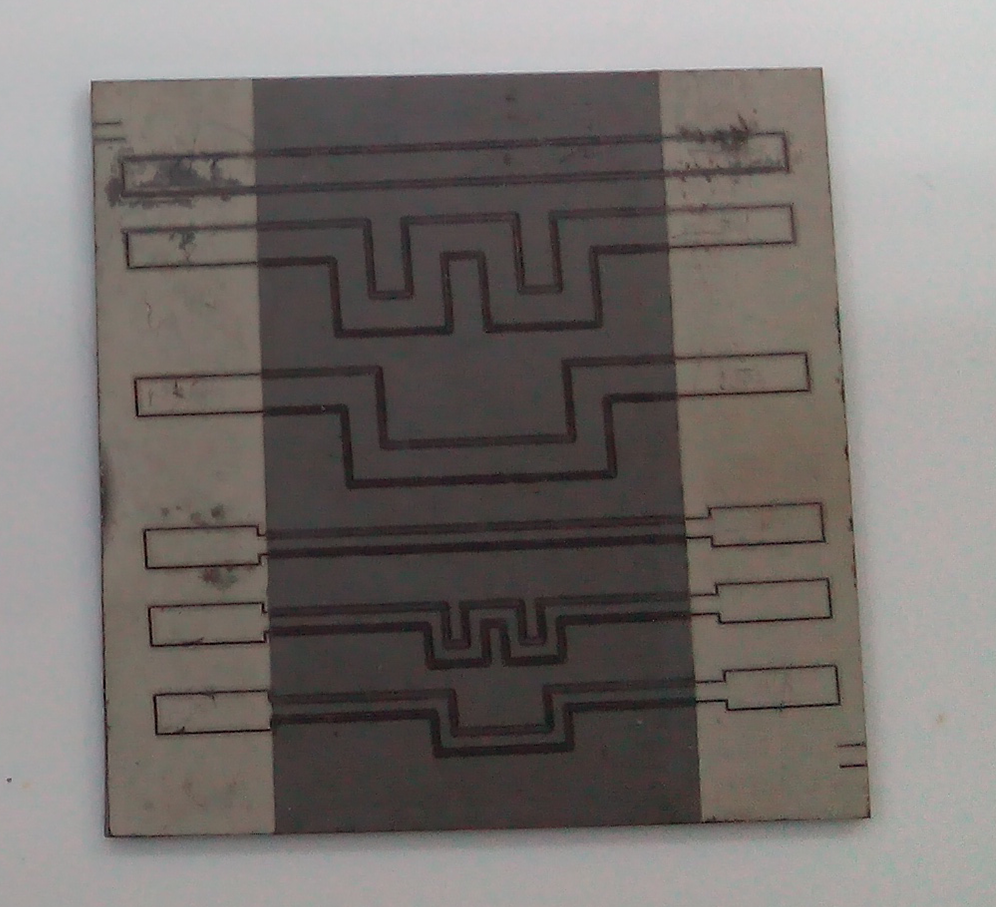

Piezoresistor model

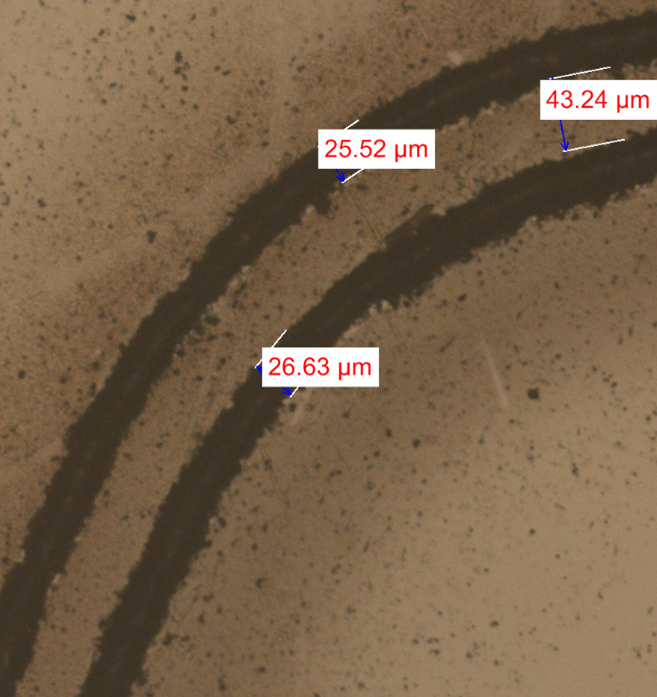

Microchannel

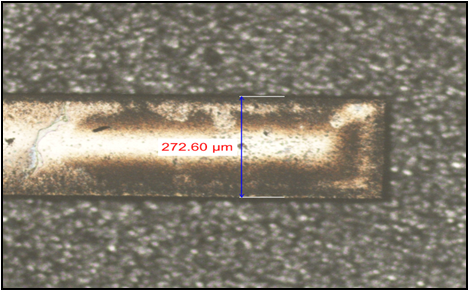

  SAMPLE : RapidX 250 Laser Micromachining

  - Fabricate microcantilever





                                   contilever 1                                                 contilever 2







 SAMPLE : RapidX 250 Laser Micromachining

 - Fabricate microcantilever



                  cantilever 1 : width ~ 40um                                    cantilever 2 : width ~ 40um

    cantilever 3 : width ~ 20um

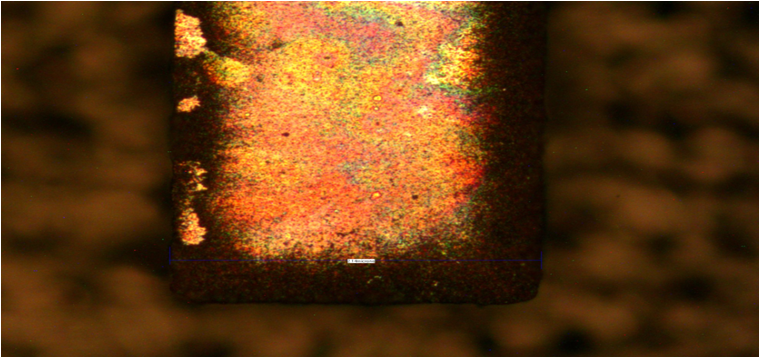

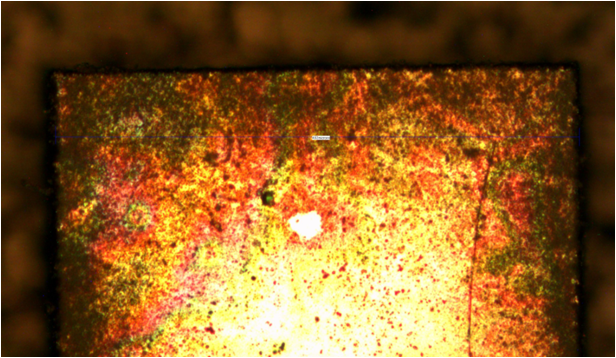

 SAMPLE : Molecular Vapour Deposition (MVD)

 -Deposit hydrophobic layer on silicon wafer



 SAMPLE : Rectangular arrayed Microcantilever



NO

LENGTH

(μm)

WIDTH

(μm)

GAP (μm)

1

998.63

144.53

512.33

2

845.21

93.84

513.70

3

698.63

71.92

512.33

4

546.58

47.95

512.33





 SAMPLE : Triangular arrayed Microcantilever



NO

LENGTH

(μm)

WIDTH

(μm)

GAP (μm)

1

998.63

142.47

498.63

2

846.58

89.73

500.00

3

701.37

65.75

500.00

4

550.68

46.27

500.00

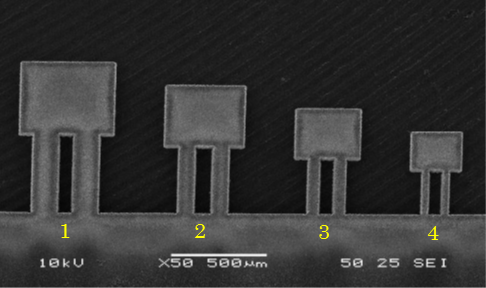

 SAMPLE : Double-Legged arrayed Microcantilever



NO

LENGTH

(μm)

WIDTH

(μm)

GAP (μm)

1

997.26

144.53

505.48

2

849.32

94.52

502.74

3

697.26

71.92

502.74

4

546.58

45.21

502.74
